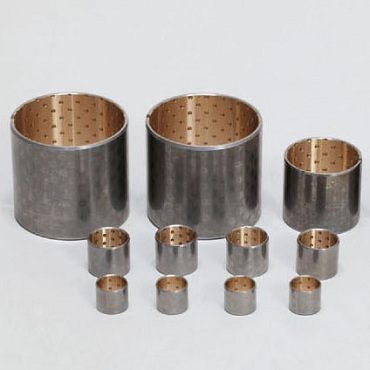

OILES Toughmet D (DX Bushing) is a bearing for high temperature and high load application consists of a sintered bronze layer in which special solid lubricants are dispersed and of a steel backing.
Features
Ø Excellent load carrying capacity and thermal resistance.
Ø Excellent bearing performance in reciprocating, oscillating motion as well as in intermittent operations.
Ø The use of lubrication oil will help reach a higher level of bearing performance due to excellent oil preservation by sintered bronze layer and by the action of contained solid lubricants.
Ø Electrically conductive.
Ø Thin wall thickness enables a compact design.
|
Lubrication condition
|
Applicable without lubrication
|
|
Service temperature range
℃
|
-40～+350
|
|
Allowable max pressure P
N/mm2
{kgf/cm2}
|
24.5(49)
{250(500)}
|
|
Allowable max velocity V
m/s
{m/min}
|
0.40
{24.0}
|
|
Allowable max PV value
N/mm2・m/s
{kgf/cm2・m/min}
|
1.65
{1,010}
|
Ø Figures in parenthesis indicates static allowable pressure, which is associated with no sliding, or with extremely low velocity of under 0.0017m/s(0.1m/min).
Ø Above values are applicable for typical products.
