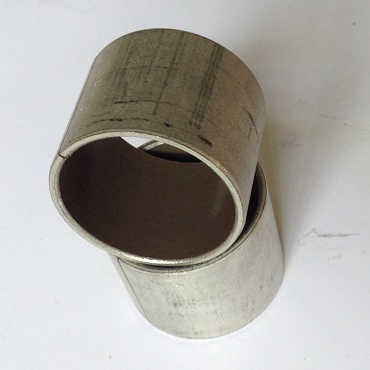

OILES Drymet LF, LFB is a multi-layered self lubricating bearing consisting of a PTFE layer, a sintered bronze layer, and a steel backing.
Features
Ø Applicable with no lubrication.
Ø Superior low co-efficient of friction and superior wear resistance in high-load applications.
Ø Using lubrication oil allows high PV value operation in medium to high-speed conditions.
Ø Wide operating temperature range.
Ø Superior chemical resistance.
Ø Thin wall thickness and light weight enables a compact design.
Ø Superior dimensional stability, mechanical strength and thermal conductivity.
Ø Various sizes of standard products are available.
|
Lubrication condition
|
Applicable without lubrication
|
|
Service temperature range
℃
|
-200～+280
|
|
Allowable max pressure P
N/mm2
{kgf/cm2}
|
49.0(137)
{500(1,400)}
|
|
Allowable max velocity V
m/s
{m/min}
|
0.65
{39.0}
|
|
Allowable max PV value
N/mm2・m/s
{kgf/cm2・m/min}
|
3.60
{2,200}
|
Ø Figures in parenthesis indicates static allowable pressure, which is associated with no sliding, or with extremely low velocity of under 0.0017m/s(0.1m/min).
Ø Above values are applicable for typical products.
